HW-1220 PET thermoforming machine for blister trays

FOB Reference Price:Get Latest Price
US $19,000-50,000 / Sets | 1 Set/Sets HW-1220 PET thermoforming machine for blister trays (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Plastic Thermoforming Machine
Condition:
New
Product Type:
plastic egg tray
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HW Machine
Model Number:
HW-1220
Voltage:
380v/220v, 50hz
Power(W):
45kw
Dimension(L*W*H):
6080x1420x3240mm
Weight:
4000kg
Certification:
CE, UL, ROHS
Warranty:
One year warranty, Lifelong maintenance
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
HW-1220 PET thermoforming machine for blister trays
Suitable material:
PP, PE, PVC, PS, PET, ABS, HIPS (biodegraded material) etc.
Forming area:
710*1220mm
PLC:
Siemens
Vacuum Pump:
RIETSCHLE 100m3/h
Application:
Fast food box, egg tray, toys, hardware, stationery packaging.
HS Code:
8477409000
Electrical part brand:
Schneider
Cooperated customers:
Egypt, Afghanistan, Canada, Pakistan, UAE and etc.
Engineers experience:
More than 15 years
Supply Ability
Supply Ability:
10 Set/Sets per Month HW-1220 PET thermoforming machine for blister trays
Packaging & Delivery
Packaging Details
Each parts wrapped with stretch film or wooden crates packing(charge).
Container: 1*40HQ
HS Code: 8477409000 for HW-1220 PET thermoforming machine for blister trays
Port
Port Shanghai, or any port in China.
Lead Time :
Shipped in 30 working days after deposit
Machine Description

HW-1220 PET thermoforming machine for blister trays

HWell Thermoforming Group(Shanghai Yiyou). We are Factory located in Shanghai, CHINA.

Our main products range include Plastic Thermoforming Machine(vacuum forming machine), thermoforming mould, machine spare parts and auxiliary machine. Also we are providing one-stop custom thermoforming services as well.

SPECIFICATIONS FOR AUTOMATIC HIGH SPEED THERMOFORMING MACHINES
Model
Forming Area
Forming Depth
Suitable Sheet's Thickness
Production Capacity
Power
Weight
HW-1000S
610-1000mm

150mm
(Can be customized to 180mm)
0.2-2.0mm


3-8cycles/minute
30kw
1.5t
HW-1220
710-1220mm

0.15-2.0mm
45kw
3t
HW-1350
710-1350mm
48kw
3.2t

What's this machine can do?

Automatic High Speed Thermoforming Machines are commonly used for plastic material such as PVC、PET、APET、PETG、PP、PE、PS、ABS、HIPS and biodegradable materials(PLA), and flocking material etc. It is widely used to produce the food trays, hardware, electronics, stationery, medical supplies, daily necessities, cosmetics, handcrafts, toys etc...

Main Features

Using microcomputer touch screen man-machine interface control system, the operation is intuitive and easy to operate, convenient and easy maintenance.
Frequency conversion motor control feeding, fast, accurate and steady.
Heating furnace temperature control module, display the temperature degree directly, accurately detect the temperature of each piece of heating.
Automatic alarm function, truly electrical-mechanical integration.
Electric furnace adopt stainless steel, heat preservation cotton sealing structure, effectively prevent heat loss.

Excellent Electrical Control Panel

As you can see the orderliness wires are lined in the panel. The clean and beautiful working environment is effective in preventing any accidents and greatly improve machine's life.

Delta PLC Control System&Touch Screen

TAIWAN brand Delta Programmable Logic Controller(PLC) has good quality reputation from our end-users for years. Also we have Siemens and Mitsubishi for customer choose.

Auxiliary machines required for this thermoforming machine.

Due to the thermoforming machine is only for automatic forming the sheet, so usually it requires a hydraulic cutting machine. As well as the industrial water chiller and air compressor need to be equipped together.
Machine Details

Plastic sheet loading shelf

Homemade and movable.
Top quality steel.

Air cylinder load material.

Mini servo motor automatic feeding.

Save labour.

(Click picture to watch video.)

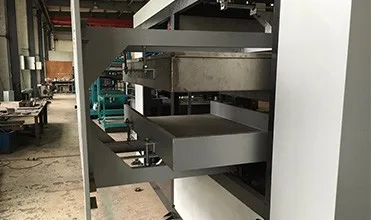

Heating system-electric furnace

Movable furnace.

60pcs of high quality heating bricks, power of each brick is 650w.

Up and bottom furnace(customized).

Heating bricks can be change to Germany or England brand.

Forming station

Vacuum pump: RIETSCHLE

Adjustable crossbeam.

Extension-type chassis.

Double sides cooling water nozzle.

(Click picture to watch video.)

Formed sheet discharge shelf

Homemade and movable.

OMRON sensor.

Automatically cut formed sheet.

Big storage room.

(Click picture to watch video.)

Our Company

Our Advantages and Why Choose US;

① we are factory: located in No.68 of Xin Sheng Road,Qingpu Industrial Zone, Qingpu District, Shanghai, China (201713). 30minutes away from SHANGHAI HONGQIAO AIRPORT! Expressway direct to SHANGHAI PUDONG AIRPORT!
② our engineer has over 15 years experience about plastic and machines.
③ we have richful sources for raw material, moulds and spare parts.
④ professional shipping team in order to protect machines during loading.
⑤ we are also providing custom thermoforming services in case of the machine cost is out of your budget.

Our Services

Machine Manufacture

Auxiliary Machines

Moulds Fabrication

Raw Material Supply

Machine Spare Parts

Finished Products Supply

Packing & Delivery
Packaging
Size
L-6960*W-1400*H-2650mm
Weight
3ton


Packaging Details
Each parts wrapped with stretch film or wooden crates packing(charge).
Container: 1*40HQ
HS Code: 8477409000
